Type SHD-GC Three-Conductor Portable Power Cable, CPE Sheath 15kV

Detail

    Applications

These heavy duty cables are designed for applications such as longwall shearers, continuous miners and mobile equipment such as shovels, dredges and drills.

    Standards

  • ICEA S-75-381/NEMA WC 58

  • ASTM B 172

  • ASTM B 33

  • CAN/CSA-C22.2 No.96

  • CAN/CSA C22.2 No. 96


    Construction

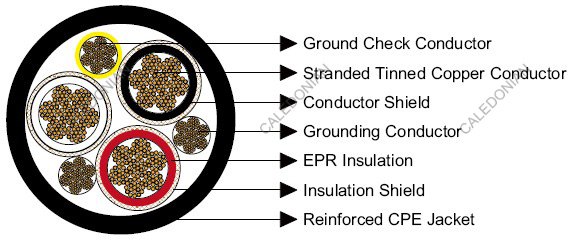

Type SHD-GC Three-Conductor Portable Power Cable

  • Conductors: Stranded annealed tinned copper conductor.

  • Conductor Shield:Semi-conducting layer.

  • Insulation:EPR.

  • Insulation Shield:Non-conducting tape + Tinned copper/textile braid.

  • Ground Check Conductor:Tinned copper with a yellow polypropylene insulation.

  • Grounding Conductor:Tinned copper conductor.

  • Sheath: Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materialscan be offered upon request.

Options:
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

    Mechanical and Thermal Properties

  • Minimum Bending Radius: 6×OD

  • Maximum Operating Temperature: +90℃


    Dimensions and Weight:

CONSTRUCTIONNO. OF STRANDSGROUNDING CONDUCTOR SIZEGROUND CHECK CONDUCTOR SIZENOMINAL INSULATION THICKNESSNOMINAL SHEATH THICKNESSNOMINAL SHEATH THICKNESSNOMINAL WEIGHTAMPACITY
NO. OF CORES×AWG
/KCMIL
-AWG/KCMILAWG/KCMILINCHMMINCHMMINCHMMLBS/KFTKG/KMA
3×2259680.2105.30.2356.02.4161.235725529164
3×1259580.2105.30.2356.02.5264.040606042187
3×1/0259480.2105.30.2506.42.6467.044956927215
3×2/0329380.2105.30.2506.42.7369.350107783246
3×3/0413280.2105.30.2656.72.9073.759958922283
3×4/0532180.2105.30.2656.73.0577.5686010209325

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
