Type SHD-GC Three-Conductor Portable Power Cable, TPU Sheath25kV

Detail

    Applications

These heavy duty cables are designed for heavy mobile equipment such as drag lines, shovels, dredges, drills and for power feeders.

    Standards

  • ICEA S-75-381/NEMA WC 58

  • ASTM B 172

  • ASTM B 33

  • CAN/CSA C22.2 No. 96


    Construction

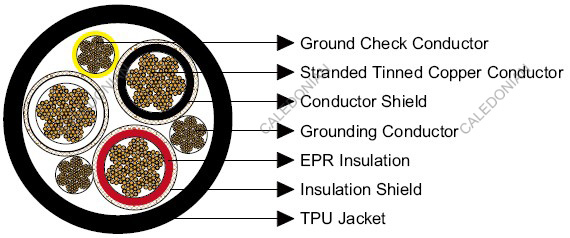

Type SHD-GC Three-Conductor Portable Power Cable, TPU Sheath25kV

  • Conductors: Stranded annealed tinned copper conductor.

  • Insulation:EPR.

  • Insulation Shield:Tinned copper/textile braid.

  • Ground Check Conductor:Tinned copper conductor with a yellow polypropylene insulation.

  • Grounding Conductor:Tinned copper conductor.

  • Sheath: Thermoplastic Polyurethane (TPU) Jacket, black. Other sheath materials can be offered as an option.

Options:
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

    Mechanical and Thermal Properties

  • Minimum Bending Radius: 8×OD

  • Maximum Operating Temperature: +90℃



    Dimensions and Weight:

CONSTRUCTIONNO. OF STRANDSGROUNDING CONDUCTOR SIZEGROUND CHECK CONDUCTOR SIZENOMINAL INSULATION THICKNESSNOMINAL SHEATH THICKNESSNOMINAL SHEATH THICKNESSNOMINAL WEIGHTAMPACITY
NO. OF CORES×AWG/KCMIL-AWG/KCMILAWG/KCMILINCHMMINCHMMINCHMMLBS/KFTKG/KMA
3×1259580.2606.60.2656.72.9574.944106561191
3×1/0266480.2606.60.2656.73.0577.548667240218
3×2/0323380.2606.60.2807.13.2081.355608272249
3×3/0418280.2606.60.2807.13.3384.661929213286
3×4/0532180.2606.60.2957.53.5088.9711010578327

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
