Type MP-GC Three-Conductor Mine Power Feeder Cable, PVC Sheath, 15kV
Detail

    Applications

These cables are designed for connections between units of mine distribution systems, suitable for installed in duct, conduit or open air and for direct burial in wet and dry locations.

    Standards

  • ICEA S-75-381/NEMA WC 58

  • ASTM B-8

  • CAN/CSA-C22.2 No.96


    Construction

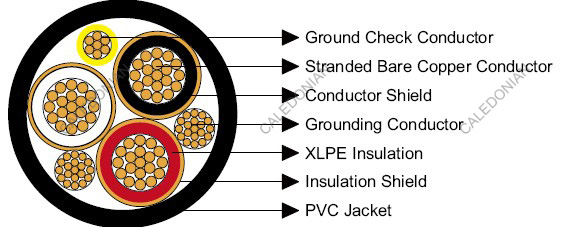

Type MP-GC Three-Conductor Mine Power Feeder Cable, PVC Sheath, 15kV

  • Conductors: Stranded annealed bare copper conductor.

  • Conductor Shield:Semi-conducting layer.

  • Insulation:Cross-Linked Polyethylene (XLPE).

  • Insulation Shield:Conducting layer + copper tape.

  • Ground Check Conductor:Copper conductor with a yellow polypropylene insulation.

  • Grounding Conductor:Tinned copper conductor.

  • Sheath: PVC, black. Other sheath materials can be offered upon request.

Options:Other jacket materials such as CSP/PCP/NBR/CPE/TPU are available upon request.

    Mechanical and Thermal Properties

  • Minimum Bending Radius: 12×OD

  • Maximum Operating Temperature: +90℃


    Dimensions and Weight:

CONSTRUCTIONNO. OF STRANDSGROUNDING CONDUCTOR SIZEGROUND CHECK CONDUCTOR SIZENOMINAL INSULATION THICKNESSNOMINAL SHEATH THICKNESSNOMINAL OVERALL DIAMETERNOMINAL WEIGHTAMPACITY
NO. OF CORES×AWG/KCMIL-AWG/KCMILAWG/KCMILINCHMMINCHMMINCHMMLBS/KFTKG/KMA
3×27680.1754.40.143.61.948.320213007164
3×119580.1754.40.143.61.9950.625033724187
3×1/019480.1754.40.143.62.0752.626583955215
3×2/019380.1754.40.143.62.1654.930664562246
3×3/019280.1754.40.143.62.2757.737105530283
3×4/019180.1754.40.143.62.3960.743696500325
3×250371/080.1754.40.143.62.486348757253359
3×350372/080.1754.40.143.62.768.664129540438
3×500374/080.1754.40.174.33.0878.2861012810536

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
