Application
These cables are designed for special application condition in wind turbines, special for medium mechanical stress and for operation under permanent influence of seawater and usage outdoor.
Standards
IEC 60502
EN 50363
HD 22.13

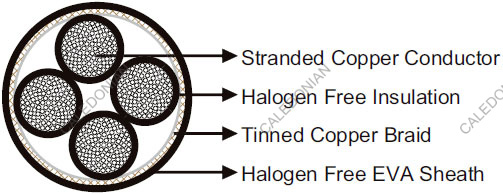

Construction
| Conductor | Stranded bare copper conductor |
| Insulation | Extruded halogen free rubber compound EI8 |
| Screen | Tinned wire copper braid |
| Sheath | Extruded halogen free EVA compound EM8 |
Technical Data
| RATED VOLTAGE U0/U (UM) | 0.6/1kV |
|---|
| OPERATING TEMPERATURES | flexing: -35℃~+90℃; fixed: -40℃~+90℃ |
|---|
| MINIMUM BENDING RADIUS | flexing: 6×OD; fixed: 4×OD |
|---|
| TORSION APPLICATION | ± 100 °/m |
|---|
| MAXIMUM PERMISSIBLE TENSILE LOAD | 15 N/mm^2 (in operation) |
|---|
| SHORT-CIRCUIT TEMPERATURE | 250℃ |
|---|
| FLAME RETARDANT | EN 50265-2-1 |
|---|
| HALOGEN FREE | IEC 60754 |
|---|
| SMOKE DENSITY | IEC 61034 |
|---|
| OIL RESISTANT | Yes |
|---|
| OZONE RESISTANT | Yes |
|---|
| SILICONE FREE | Yes |
|---|
Dimensions and Weight
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|
| NO. OF CORES×MM^2 | MM | KG/KM |
|---|
| 25×0.75 | 18.0 | 500 |
| 25×1 | 20.0 | 550 |
| 4×1.5 | 10.0 | 150 |
| 12×1.5 | 16.0 | 400 |
| 32×1.5 | 26.0 | 950 |
| 42×1.5 | 35.0 | 1700 |
| 12×2.5 | 23.0 | 620 |
| 5×2.5 | 15.0 | 300 |
| 4×4 | 13.5 | 300 |
