German Standard Industrial Cables H05VV-F/SJT

Detail

    Application and Description

These cables are suited to be used for cooking and heating apparatus under the condition that cable does not come in direct contact with hot parts of the apparatus and no other influences or heat. The cables are suitable for fixed installation in furniture, partition walls, decoration covering and in hollow spaces of prefabricated building parts. They are not suitable for use in open air, in industries (also permitted to tailor workshops and of that kind) and in agriculture plants and for connecting commercial electrical tools.

    Standard and Approval

<HAR> HD21.5 S3, VDE-0281 Part-5 & Part-2, UL Style 62 (SJT), VW-1, CSA 22.2 No 49, FT-1, CE low voltage directive 73/23/EEC & 93/68/EEC., IEC 60227-5, ROHS compliant

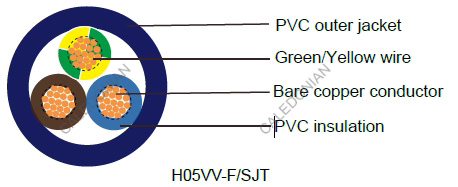

    Cable Construction

- - Bare copper fine wire conductor
- Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
- PVC core insulation T12 to VDE-0281 Part 1
- Color coded to VDE-0293-308
- Green-yellow grounding (3 conductors and above)
- PVC outer jacket TM2

    Technical Characteristics

- Working voltage VDE: 300/500 volts
- Working Voltage UL/CSA: 300 volts
- Test voltage: 2000 volts
- Flexing bending radius: 7.5 x Ø
- Static bending radius: 4 x Ø
- Flexing temperature: -5º C to +70º C
- Static temperature: -40º C to +70º C
- Flame retardant: IEC 60332.1, VW-1
- Insulation resistance: 20 MΩ x km

H05VV-F/SJT - German Standard Industrial Cables     H05VV-F/SJT - German Standard Industrial Cables

    Cable Parameter

AWGNO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM²NOMINAL THICKNESS OF INSULATION MMNOMINAL THICKNESS OF SHEATH MMNOMINAL OVERALL DIAMETER MMNOMINAL COPPER WEIGHT KG/KMNOMINAWEIGHT KG/KM
17(32/32)2 x 10.60.87.219.256
17(32/32)3 x 10.60.87.628.873
17(32/32)4 x 10.60.98.638.486
17(32/32)5 x 10.60.99.448105
16(30/30)2 x 1.50.70.87.62882
16(30/30)3 x 1.50.70.98.34496
16(30/30)4 x 1.50.719.358117
16(30/30)5 x 1.50.71.110.472144
14(30/50)2 x 2.50.819.248118
14(30/50)3 x 2.50.81.11072152
14(30/50)4 x 2.50.81.110.996192
14(30/50)5 x 2.50.81.212.2120243
12(56/28)2 x 40.81.110.676195
12(56/28)3 x 40.81.211.5115235
12(56/28)4 x 40.81.212.4154300
12(56/28)5 x 40.81.414.1192361
