German Standard Industrial Cables H05RN-F/H05RNH2-F
Detail

    Application and Description

These cables are flexible, mainly recommended for use in electrical equipment under low stress in dry, damp and wet areas in indoor or outdoor environments. Commonly used for connection of electrical appliances when exposed to low mechanical strain in household, offices and for light utilities. Anywhere where there is minimal physical damage. Also suitable for fixed installation in furniture, decorative coverings, wall partitions and pre-fabricated building parts. Max operating voltage in single or three phase system is Uo/U 318/550 volts. In a direct current system max operating voltage is Uo/U 413/825 volts. They are ozone resistant, oil& fat resistant

    Standard and Approval

<HAR> HD22.4 S3, VDE-0282 Part-4, CEI 20-19 p.4,CE low voltage directive 73/23/EEC & 93/68/EEC., IEC 60245-4, ROHS compliant

Cable Construction

- Fine bare copper strands
- Strands to VDE-0295 Class-5, IEC 60228 Class-5
- Rubber core insulation EI4 to VDE-0282 Part-1
- Color code VDE-0293-308
- Green-yellow grounding, 3 conductors and above
- Polychloroprene rubber (neoprene) jacket EM2

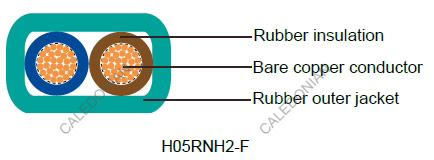

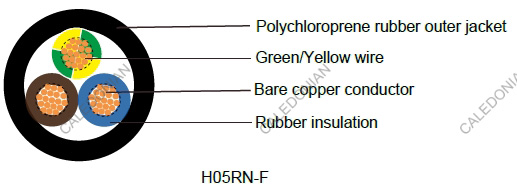

H05RN-F/H05RNH2-F - German Standard Industrial CablesH05RN-F/H05RNH2-F - German Standard Industrial Cables

    Technical Characteristics

- Working voltage: 300/500 volts
- Test voltage: 2000 volts
- Flexing bending radius: 7.5 x Ø
- Fixed bending radius: 4.0 x Ø
- Temperature Range: -30º C to +60º C
- Short circuit temperature: +200 º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km

H05RN-F/H05RNH2-F - German Standard Industrial Cables           H05RN-F/H05RNH2-F - German Standard Industrial Cables

    Cable Parameter

AWGNO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM²NOMINAL THICKNESS OF INSULATION MMNOMINAL THICKNESS OF SHEATH MMNOMINAL OVERALL DIAMETER MM MIN-MAXNOMINAL COPPER WEIGHT KG/KMNOMINAL WEIGHT KG/KM
H05RN-F
18(24/32)2 x 0.750.60.85.7 - 7.414.480
18(24/32)3 x 0.750.60.96.2 - 8.121.695
18(24/32)4 x 0.750.60.96.8 - 8.830105
17(32/32)2 x 10.60.96.1 - 8.01995
17(32/32)3 x 10.60.96.5 - 8.529115
17(32/32)4 x 10.60.97.1 – 9.238142
16(30/30)3 x 1.50.81.08.6 - 11.029105
16(30/30)4 x 1.50.81.19.5 - 12.239129
16(30/30)5 x 1.50.81.110.5 - 13.548153
H05RNH2-F
16(30/30)2 x 1.50.60.85.25±0.15x13.50±0.3014.480
14(50/30)2 x 2.50.60.95.25±0.15x13.50±0.3021.695
