Application
These cables are designed for use at medium mechanical stresses in wind turbines.
Standards
UL 758
DIN VDE 0250
DIN VED 0282

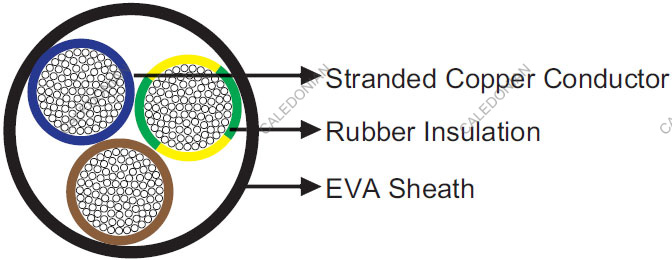

Construction
| Conductor | Stranded bare copper, fine wire class 5 according to IEC 60228 / DIN EN 60228 |
| Insulation | Rubber compound |
| Sheath | EVA |
Technical Data
| Rated Voltage Uo/U (Um) | 600/1000V (DIN VDE 0250)/1000V (AWM 758) |
| Operating Temperatures | -40℃~+90℃ |
| Minimum Bending Radius | flexing: 6×OD; fixed: 4×OD |
| Short-circuit Temperature | 250℃ |
| Flame Retardant | IEC 60332-1 |
| Halogen Free | EN 50267-2-1/IEC 60754 |
| Corrosive Gases | DIN EN 50267-2 |
| Smoke Density | IEC 61034 |
| Oil Resistant | Yes |
| Cooling Fluid Resistance | Yes |
| Ozone Resistant | Yes |
| UV Resistant | Yes |
Dimensions and Weight
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|
| NO. OF CORES×MM^2 | MM | KG/KM |
|---|
| 3×1.5 | 10.3 | 142 |
| 4×1.5 | 11.3 | 182 |
| 5×1.5 | 12.5 | 224 |
| 3×2.5 | 12.5 | 217 |
| 4×2.5 | 13.0 | 265 |
| 5×2.5 | 14.5 | 326 |
| 3×4 | 14.5 | 313 |
| 4×4 | 15.5 | 383 |
| 3×6 | 15.5 | 407 |
| 4×6 | 17.5 | 514 |
| 2×10 | 18.5 | 560 |
| 3×10 | 20.0 | 688 |
| 4×10 | 22.0 | 642 |
| 5×10 | 25.5 | 1095 |
| 3×16 | 23.0 | 946 |
| 4×16 | 26.0 | 1242 |
| 5×16 | 28.5 | 1501 |
| 1×25 | 13.0 | 364 |
| 3×25 | 28.0 | 1416 |
| 4×25 | 30.5 | 1746 |
| 5×25 | 34.0 | 2173 |
| 1×35 | 15.0 | 491 |
| 3×35 | 31.5 | 1894 |
| 4×35 | 34.5 | 2338 |
| 5×35 | 38.0 | 2849 |
| 1×50 | 17.0 | 682 |
| 3×50 | 36.0 | 2564 |
| 4×50 | 40.0 | 3236 |
| 5×50 | 44.0 | 3941 |
| 1×70 | 19.5 | 936 |
| 3×70 | 41.5 | 3466 |
| 4×70 | 46.5 | 4504 |
| 5×70 | 51.0 | 5515 |
| 1×95 | 21.5 | 1209 |
| 3×95 | 47.5 | 4580 |
| 1×120 | 24.0 | 1487 |
| 3×120 | 51.0 | 5517 |
