German Standard Industrial Cables H05V2-U/H07V2-U
Detail

    Application and Description

These cables are for fixed protected installation inside appliances and in, or on, lighting fittings. Suitable for installation in surface mounted or embedded conduits, only for signalling and control circuits. Maximum conductor temperature in normal use 90°C. Not to be used in contact with object higher then 85°C. Not suitable for fixed distribution system.

    Standard and Approval

<HAR> HD 21.7 S2, VDE-0281 Part-7, CEI20-20/7,
CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

    Cable Construction

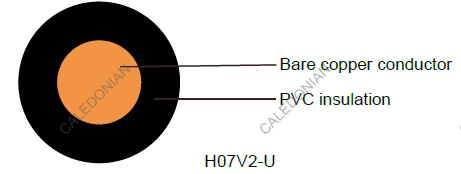

- Solid bare copper single wire
- Solid to DIN VDE 0281-3, HD 21.3 S3 and IEC 60227-3
- Special PVC TI3 ore insulation
- Cores to VDE-0293 colors on chart
- H05V-U (20, 18 & 17 AWG)
- H07V-U (16 AWG and Larger)

    Technical Characteristics

- Working voltage: 300/500v (H05V-U)
- Working voltage: 450/750v (H07V-U)
- Test voltage: 2000V(H05V-U)/2500V (H07V-U)
- Flexing bending radius: 15 x Ø
- Static bending radius: 15 x Ø
- Flexing temperature: -5º C to +70º C
- Static temperature: -30º C to +80º C
- Short circuit temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 10 MΩ x km

German Standard Industrial Cables
H05V2-U/H07V2-U            German Standard Industrial Cables
H05V2-U/H07V2-U

    Cable Parameter

AWGNO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM²NOMINAL THICKNESS OF INSULATION MMNOMINAL OVERALL DIAMETER MMNOMINAL COPPER WEIGHT KG/KMNOMINAL WEIGHT KG/KM
201 x 0.50.62.14.89
181 x 0.750.62.27.211
171 x 10.62.49.614
161 x 1.50.72.914.421
141 x 2.50.83.524.033
121 x 40.83.938.049
101 x 60.84.558.069
81 x 101.05.796.0115
