German Standard Industrial Cables H05G-K/H07G-K
Detail

    Application and Description

These cables are recommended for the internal wiring of switchboards and distributor boards as well as 1000V. or direct nominal voltage of 750V. These cables are all allowed for laying in tubes in and under plaster.

    Standard and Approval

  • <HAR> HD 22.7 S2

  • VDE-0282 Part-7

  • CEI 20-19/7

  • CEI 20-35(EN60332-1)

  • CE Low Voltage Directive 73/23/EEC and 93/68/EEC

  • ROHS compliant

    Cable Construction

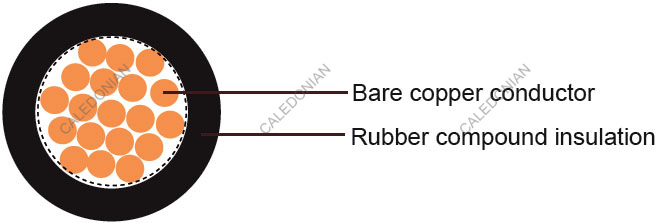

H05G-KH05G-K - German Standard Industrial Cables
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
Rubber compound type EI3 (EVA) to DIN VDE 0282 part 7 insulation
Cores to VDE-0293 colors

    Technical Characteristics

WORKING VOLTAGE300/500v (H05G-K) ; 450/750v (H07G-K)
TEST VOLTAGE2000volts (H05G-K) ; 2500 volts (H07G-K)
FLEXING BENDING RADIUS7 x Ø
STATIC BENDING RADIUS7 x Ø
FLEXING TEMPERATURE-25 ºC to +110 ºC
STATIC TEMPERATURE-40 ºC to +110 ºC
FLAME RETARDANTIEC 60332.1
INSULATION RESISTANCE10 MΩ x km

    Cable Parameter

AWGNO. OF CORES X NOMINAL CROSS SECTIONAL AREANOMINAL THICKNESS OF INSULATIONNOMINAL OVERALL DIAMETERNOMINAL COPPER WEIGHTNOMINAL WEIGHT
# X MM²MMMMKG/KMKG/KM
H05G-K
20(16/32)1 x 0.50.62.34.813
18(24/32)1 x 0.750.62.67.216
17(32/32)1 x 10.62.89.622
H07G-K
16(30/30)1 x 1.50.83.414.424
14(50/30)1 x 2.50.94.12442
12(56/28)1 x 41.05.13861
10(84/28)1 x 61.05.55878
8(80/26)1 x 101.26.896130
6(128/26)1 x 161.28.4154212
4(200/26)1 x 251.49.9240323
2(280/26)1 x 351.411.4336422
1(400/26)1 x 501.613.2480527
2/0(356/24)1 x 701.615.4672726
3/0(485/24)1 x 951.817.2912937
4/0(614/24)1 x 1201.819.711521192
