Halogen Free Torsion Resistant Fire Alarm Cable 24V
Detail

Application

These fire alarm cables are designed for the torsion applications in the loop section of wind turbines.

Standards

  • IEC 60502

  • DIN VDE 0250

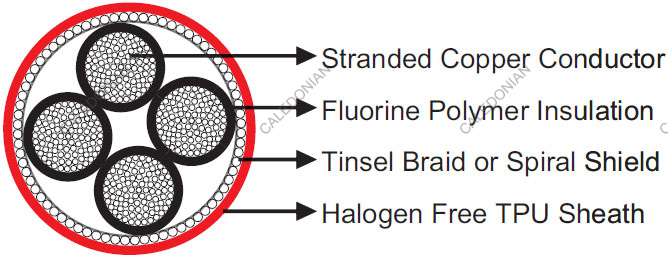

Construction

Halogen Free Torsion Resistant Fire Alarm Cable 24V
ConductorStranded copper wires, class 6 according to DIN VDE 0295/ IEC 60228
InsulationFluorine polymer
ScreenTinsel braid or spiral shield
SheathFlame retardant halogen-free TPU

Technical Data

Rated Voltage U0/U(Um)24V
Operating Temperatures-50℃~+90℃
Minimum Bending Radius7.5×OD
Torsion Application+/-1080°/5m
Flame RetardantIEC 60332-3
Halogen FreeIEC 60754
Oil ResistantYes
Abrasion ResistantYes

Dimensions and Weight

CONSTRUCTIONNOMINAL OVERALL DIAMETERNOMINAL WEIGHT
NO. OF CORES×MM^2MMKG/KM
4×0.756.682
