German Standard Industrial Cables H05G-U/H07G-U/R

Detail

    Application and Description

These cables are recommended for the internal wiring of switchboards and distributor boards as well as in operating parts in or on lights. The higher temperature range allows for connections to heaters with an alternating nominal voltage of 1000V. or direct nominal voltage of 750V. These cables are all allowed for laying in tubes in and under plaster.

    Standard and Approval

  • <HAR> HD 22.7 S2

  • VDE-0282 Part-7

  • CEI 20-19/7

  • CEI 20-35(EN60332-1)

  • CE Low Voltage Directive 73/23/EEC and 93/68/EEC

  • ROHS compliant

    Cable Construction

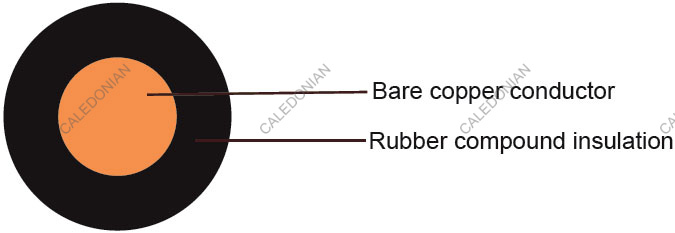

H05G-UH05G-U - German Standard Industrial Cables
Solid bare copper / strands
Strands to VDE-0295 Class-1/2, IEC 60228 Class-1/2
Rubber compound type EI3 (EVA) to DIN VDE 0282 part 7 insulation
Cores to VDE-0293 colors

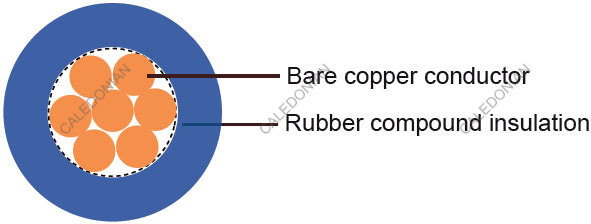

H07G-RH07G-R - German Standard Industrial Cables

    Technical Characteristics

WORKING VOLTAGE300/500v (H05G-U) ; 450/750v (H07G-U/R)
TEST VOLTAGE2000volts (H05G-U) ; 2500 volts (H07G-U/R)
FLEXING BENDING RADIUS7 x Ø
STATIC BENDING RADIUS7 x Ø
FLEXING TEMPERATURE-25 ºC to +110 ºC
STATIC TEMPERATURE-40 ºC to +110 ºC
SHORT CIRCUIT TEMPERATURE+160 ºC
FLAME RETARDANTIEC 60332.1
INSULATION RESISTANCE10 MΩ x km

    Cable Parameter

AWGNO. OF CORES X NOMINAL CROSS SECTIONAL AREANOMINAL THICKNESS OF INSULATIONNOMINAL OVERALL DIAMETERNOMINAL COPPER WEIGHTNOMINAL WEIGHT
# X MM²MMMMKG/KMKG/KM
H05G-U
201 x 0.50.62.14.89
181 x 0.750.62.37.212
171 x 10.62.59.615
H07G-U
161 x 1.50.83.114.421
141 x 2.50.93.62432
121 x 41.04.33849
H07G-R
10(7/18)1 x 61.05.25870
8(7/16)1 x 101.26.596116
6(7/14)1 x 161.27.5154173
4(7/12)1 x 251.49.2240268
2(7/10)1 x 351.410.3336360
1(19/13)1 x 501.612.0480487
