Application
These cables are specifically designed for connecting generator output of thermal class (B),motors, transformers and relays requiring for high temperature resistant.
Standards

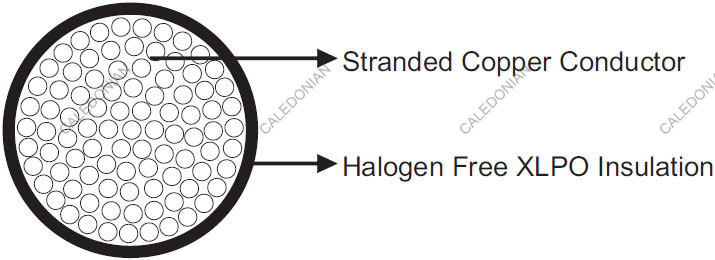

Construction
| Conductor | Stranded tinned copper wires, class 5/class 6 according to DIN VDE 0295/ IEC 60228 |
| Insulation | Halogen-free XLPO |
Technical Data
| Rated Voltage U0/U(Um) | 0.6/1kV |
| Operating Temperatures | -55℃~+145℃ |
| Minimum Bending Radius | 6×OD |
| Flame Retardant | IEC 60332-3 |
| Halogen Free | IEC 60754 |
| Corrosive Gases | IEC 60754 |
| Smoke Density | IEC 61034 |
| Oil Resistant | Yes |
| Ozone Resistant | Yes |
| UV Resistant | Yes |
| Cold Resistant | CSA C 22.2 |
Dimensions and Weight
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|
| NO. OF CORES×MM^2 | MM | KG/KM |
|---|
| 1×6 | 5.4 | 70 |
| 1×10 | 6.8 | 119 |
| 1×16 | 8.5 | 180 |
| 1×25 | 10.3 | 270 |
| 1×35 | 11.8 | 373 |
| 1×50 | 13.9 | 528 |
| 1×70 | 16.0 | 728 |
| 1×95 | 18.5 | 966 |
| 1×120 | 20.5 | 1230 |
| 1×150 | 22.1 | 1530 |
| 1×185 | 24.8 | 1880 |
| 1×240 | 27.7 | 2500 |
| 1×300 | 37.8 | 3910 |
| 1×400 | 38.7 | 4870 |
