(N)TSCGEHXOEU Medium Voltage LSOH Torsion Resistant Cable
Detail

Application

These LSOH cables are specifically designed for special application condition in wind turbines, used for economical transmission of large energy rates with medium voltage.

Standards

  • DIN VDE 0250 Part 813

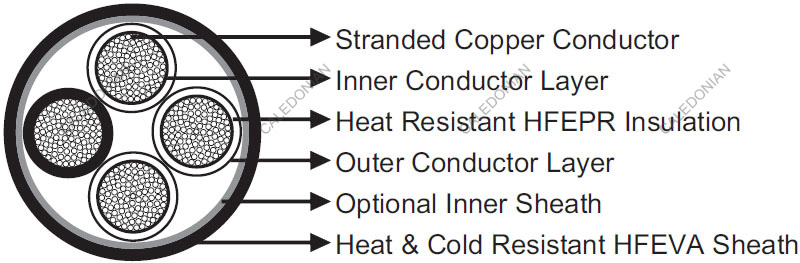

Construction

(N)TSCGEHXOEU Medium Voltage LSOH Torsion Resistant Cable
ConductorStranded tinned/bare copper, class 5 according to DIN VDE 0295 IEC 60228
Inner Conductor LayerSemiconductive halogen free rubber compound
InsulationHalogen free, heat resistant insulation based on EPR
Outer Conductor LayerSemiconductive rubber compound
Optional Inner SheathExtruded special rubber compound
SheathHalogen free special rubber compound based on EVA

Technical Data

Rated Voltage Uo/U (Um)8.7/15 kV, 12/20 kV,18/30 kV,20/35 kV
Operating Temperatures-40℃~+90℃
Minimum Bending Radius10×OD
Torsion Application+/100°/m
Maximum Permissible Tensile Load15N/mm^2
Short-circuit Temperature250℃
Flame RetardantDIN EN 60332-1
Halogen FreeIEC 60754
Corrosive GasesDIN EN 50267-2-3
Smoke DensityDIN EN 50268-2
Oil ResistantYes
Ozone ResistantYes
UV ResistantYes
Silicone FreeYes

Dimensions and Weight

8.7/15KV

CONSTRUCTIONNOMINAL OVERALL DIAMETERNOMINAL WEIGHT
NO. OF CORES×MM^2MMKG/KM
3×50/5051.54050
3×70/7057.55250
3×95+3×16.757.55600

12/20KV

CONSTRUCTIONNOMINAL OVERALL DIAMETERNOMINAL WEIGHT
NO. OF CORES×MM^2MMKG/KM
3×25/2551.53400
3×35/3554.54000
3×50/5056.54700
3×70/7059.05700
3×95/9565.56900

18/30KV

CONSTRUCTIONNOMINAL OVERALL DIAMETERNOMINAL WEIGHT
NO. OF CORES×MM^2MMKG/KM
3×25/2567.55300
3×35/3567.55600
3×50/5069.56300
3×70/7071.57100
3×95/9576.58500

20/35 KV

CONSTRUCTIONNOMINAL OVERALL DIAMETERNOMINAL WEIGHT
NO. OF CORES×MM^2MMKG/KM
3×25/2573.06100
3×35/3573.06500
3×50/5073.06800
3×70/7076.07900
3×95/9578.09100
