Application
These screened cables are used as supply or interconnecting cable for measuring, controlling and regulating for light and medium mechanical stresses.
Standards

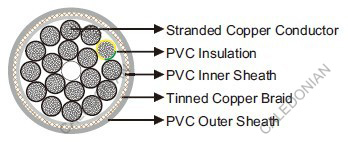

Construction
| Conductor | Stranded bare copper, class 5/class 6 according to IEC 60228 |
| Insulation | PVC Type YI 4 |
| Inner Sheath | PVC |
| Screen | Tinned copper braid |
| Outer Sheath | PVC oil resistant Type YM 5 |
Technical Data
| Rated Voltage Uo/U (Um) | 300/500 V |
| Operating Temperatures | flexing: -15℃~+80℃; fixed: -40℃~+80℃ |
| Minimum Bending Radius | flexing: 20×OD; fixed: 10×OD |
| Flame Retardant | IEC 60332-1 |
| Oil Resistant | Yes |
| Ozone Resistant | Yes |
| Silicone Free | Yes |
Dimensions and Weight
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|
| NO. OF CORES×MM2 | MM | KG/KM |
|---|
| 3G0.75 | 8.6 | 108 |
| 4G0.75 | 9.5 | 123 |
| 5G0.75 | 10.0 | 147 |
| 7G0.75 | 11.9 | 189 |
| 12G0.75 | 14.7 | 296 |
| 25G0.75 | 19.5 | 529 |
| 3G1 | 9.3 | 130 |
| 4G1 | 9.9 | 150 |
| 5G1 | 11.0 | 191 |
| 7G1 | 12.6 | 223 |
| 12G1 | 15.1 | 322 |
| 18G1 | 17.9 | 455 |
| 25G1 | 21.7 | 668 |
| 3G1.5 | 10.1 | 146 |
| 4G1.5 | 11.1 | 179 |
| 5G1.5 | 12.5 | 221 |
| 7G1.5 | 14.5 | 303 |
| 12G1.5 | 17.6 | 448 |
| 18G1.5 | 21.2 | 637 |
| 25G1.5 | 24.7 | 845 |
| 47G1.5 | 32.0 | 1480 |
| 3G2.5 | 11.6 | 207 |
| 4G2.5 | 12.9 | 247 |
| 5G2.5 | 14.4 | 309 |
G: with green-yellow earth core
×: without green-yellow earth core
