Application
These screened cables are designed for special purpose of data transmission in wind turbines, suitable for in dry, moist and wet rooms.
Standards

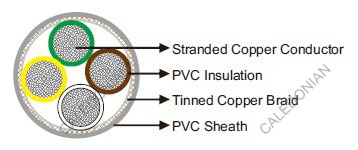

Construction
| Conductor | Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228. |
| Insulation | PVC type TI2. |
| Drain Wire | Tinned copper conductor. |
| Screen | Tinned copper wire braid. |
| Sheath | PVC type TM2. |
Technical Data
| Rated Voltage Uo/U (Um) | 350V (<0.25 mm2); 500V (≥0.25 mm2) |
| Operating Temperatures | flexing: -5℃~+80℃; fixed: -40℃~+80℃ |
| Minimum Bending Radius | flexing: 10×OD; fixed: 5×OD |
| Flame Retardant | VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
| Oil Resistant | Yes |
| Silicone Free | Yes |
Dimensions and Weight
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|
| NO. OF CORES×MM2 | MM | KG/KM |
|---|
| 1×0.14 | 2.5 | 16 |
| 2×0.14 | 3.7 | 20 |
| 3×0.14 | 3.9 | 27 |
| 4×0.14 | 4.1 | 32 |
| 5×0.14 | 4.4 | 37 |
| 6×0.14 | 4.9 | 42 |
| 7×0.14 | 4.9 | 48 |
| 8×0.14 | 5.2 | 55 |
| 10×0.14 | 6.2 | 65 |
| 12×0.14 | 6.2 | 77 |
| 14×0.14 | 6.6 | 79 |
| 16×0.14 | 6.9 | 89 |
| 18×0.14 | 7.2 | 103 |
| 20×0.14 | 7.7 | 116 |
| 21×0.14 | 7.9 | 120 |
| 24×0.14 | 8.3 | 131 |
| 25×0.14 | 8.5 | 136 |
| 27×0.14 | 8.5 | 142 |
| 30×0.14 | 9.3 | 157 |
| 32×0.14 | 9.6 | 163 |
| 36×0.14 | 9.9 | 182 |
| 40×0.14 | 10.2 | 209 |
| 42×0.14 | 10.5 | 217 |
| 44×0.14 | 11.2 | 226 |
| 48×0.14 | 11.3 | 240 |
| 52×0.14 | 11.8 | 270 |
| 56×0.14 | 12.1 | 320 |
| 61×0.14 | 12.4 | 370 |
| 80×0.14 | 14.1 | 510 |
| 100×0.14 | 15.5 | 580 |
| 1×0.25 | 2.9 | 27 |
| 2×0.25 | 4.2 | 31 |
| 3×0.25 | 4.3 | 36 |
| 4×0.25 | 4.7 | 40 |
| 5×0.25 | 5.3 | 51 |
| 6×0.25 | 5.7 | 58 |
| 7×0.25 | 5.7 | 64 |
| 8×0.25 | 6.6 | 82 |
| 10×0.25 | 7.2 | 85 |
| 12×0.25 | 7.3 | 90 |
| 14×0.25 | 7.9 | 110 |
| 16×0.25 | 8.3 | 142 |
| 18×0.25 | 8.9 | 144 |
| 19×0.25 | 9.1 | 146 |
| 20×0.25 | 9.4 | 150 |
| 21×0.25 | 9.4 | 152 |
| 24×0.25 | 10.0 | 163 |
| 25×0.25 | 10.1 | 169 |
| 27×0.25 | 10.1 | 176 |
| 30×0.25 | 11.1 | 189 |
| 32×0.25 | 11.1 | 204 |
| 36×0.25 | 11.9 | 219 |
| 37×0.25 | 11.9 | 230 |
| 40×0.25 | 12.4 | 247 |
| 42×0.25 | 12.8 | 269 |
| 44×0.25 | 12.8 | 292 |
| 48×0.25 | 13.5 | 317 |
| 52×0.25 | 14.1 | 330 |
| 56×0.25 | 14.5 | 343 |
| 61×0.25 | 14.9 | 365 |
| 80×0.25 | 17.1 | 480 |
| 100×0.25 | 19.6 | 605 |
| 1×0.34 | 3.2 | 24 |
| 2×0.34 | 4.8 | 30 |
| 3×0.34 | 5.2 | 37 |
| 4×0.34 | 5.5 | 48 |
| 5×0.34 | 6.0 | 54 |
| 6×0.34 | 6.7 | 61 |
| 7×0.34 | 6.7 | 67 |
| 8×0.34 | 7.8 | 81 |
| 10×0.34 | 8.4 | 103 |
| 12×0.34 | 8.5 | 110 |
| 14×0.34 | 9.0 | 153 |
| 16×0.34 | 9.4 | 159 |
| 18×0.34 | 9.8 | 172 |
| 19×0.34 | 9.9 | 181 |
| 20×0.34 | 10.1 | 191 |
| 21×0.34 | 10.7 | 199 |
| 24×0.34 | 10.7 | 229 |
| 25×0.34 | 12.0 | 241 |
| 27×0.34 | 12.1 | 258 |
| 30×0.34 | 12.1 | 290 |
| 32×0.34 | 12.6 | 305 |
| 36×0.34 | 12.6 | 330 |
| 37×0.34 | 13.7 | 348 |
| 40×0.34 | 13.7 | 364 |
| 42×0.34 | 14.6 | 389 |
| 44×0.34 | 14.6 | 414 |
| 48×0.34 | 14.6 | 420 |
| 52×0.34 | 14.6 | 450 |
| 56×0.34 | 16.2 | 480 |
| 61×0.34 | 16.6 | 520 |
| 80×0.34 | 17.1 | 580 |
| 100×0.34 | 19.4 | 694 |
| 1×0.5 | 3.4 | 40 |
| 2×0.5 | 5.3 | 45 |
| 3×0.5 | 5.6 | 55 |
| 4×0.5 | 6.0 | 61 |
| 5×0.5 | 6.7 | 76 |
| 6×0.5 | 7.3 | 89 |
| 7×0.5 | 7.3 | 98 |
| 8×0.5 | 8.5 | 117 |
| 10×0.5 | 9.2 | 135 |
| 12×0.5 | 9.5 | 157 |
| 14×0.5 | 10.0 | 190 |
| 16×0.5 | 10.6 | 210 |
| 18×0.5 | 10.7 | 217 |
| 19×0.5 | 11.2 | 246 |
| 20×0.5 | 11.9 | 275 |
| 24×0.5 | 12.6 | 337 |
| 25×0.5 | 12.7 | 351 |
| 27×0.5 | 12.7 | 373 |
| 30×0.5 | 14.0 | 396 |
| 32×0.5 | 14.5 | 431 |
| 34×0.5 | 15.3 | 440 |
| 36×0.5 | 15.3 | 445 |
| 37×0.5 | 16.3 | 458 |
| 40×0.5 | 16.3 | 470 |
| 50×0.5 | 18.0 | 570 |
| 61×0.5 | 19.1 | 650 |
| 80×0.5 | 21.8 | 780 |
| 100×0.5 | 24.3 | 990 |
| 1×0.75 | 3.8 | 41 |
| 2×0.75 | 6.0 | 59 |
| 3×0.75 | 6.2 | 66 |
| 4×0.75 | 6.7 | 77 |
| 5×0.75 | 7.3 | 93 |
| 6×0.75 | 8.1 | 113 |
| 7×0.75 | 8.2 | 130 |
| 8×0.75 | 9.0 | 145 |
| 10×0.75 | 10.3 | 180 |
| 12×0.75 | 10.4 | 202 |
| 14×0.75 | 11.2 | 225 |
| 16×0.75 | 11.8 | 275 |
| 18×0.75 | 12.6 | 292 |
| 19×0.75 | 12.6 | 322 |
| 20×0.75 | 13.1 | 362 |
| 24×0.75 | 14.1 | 415 |
| 25×0.75 | 14.3 | 435 |
| 27×0.75 | 14.3 | 467 |
| 30×0.75 | 15.7 | 486 |
| 32×0.75 | 16.3 | 530 |
| 34×0.75 | 17.1 | 570 |
| 36×0.75 | 17.1 | 600 |
| 37×0.75 | 17.6 | 640 |
| 40×0.75 | 17.8 | 680 |
| 42×0.75 | 18.4 | 714 |
| 61×0.75 | 21.5 | 900 |
| 80×0.75 | 24.5 | 1200 |
| 100×0.75 | 27.2 | 1440 |
| 2×1 | 6.4 | 65 |
| 3×1 | 6.7 | 80 |
| 4×1 | 7.2 | 98 |
| 5×1 | 8.0 | 127 |
| 6×1 | 8.6 | 144 |
| 7×1 | 8.6 | 158 |
| 8×1 | 10.0 | 197 |
| 10×1 | 11.2 | 232 |
| 12×1 | 11.4 | 260 |
| 14×1 | 12.0 | 302 |
| 16×1 | 12.8 | 346 |
| 19×1 | 13.4 | 412 |
| 24×1 | 15.2 | 493 |
| 27×1 | 15.4 | 562 |
| 37×1 | 18.9 | 790 |
| 2×1.5 | 7.3 | 88 |
| 3×1.5 | 7.6 | 100 |
| 4×1.5 | 8.2 | 126 |
| 5×1.5 | 9.1 | 160 |
| 6×1.5 | 9.9 | 192 |
| 7×1.5 | 9.9 | 208 |
| 8×1.5 | 10.8 | 244 |
| 10×1.5 | 13.2 | 315 |
| 12×1.5 | 13.2 | 338 |
| 14×1.5 | 13.9 | 383 |
| 16×1.5 | 14.8 | 424 |
| 19×1.5 | 15.6 | 506 |
| 24×1.5 | 17.6 | 690 |
| 27×1.5 | 17.9 | 781 |
| 37×1.5 | 21.9 | 941 |
