Application
These screened cables are designed for special purpose of data transmission in wind turbines, suitable for in dry, moist and wet rooms.
Standards

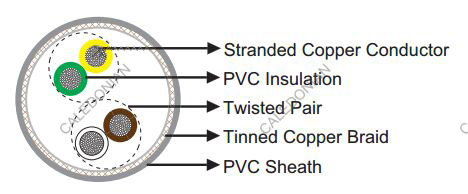

Construction
| Conductor | Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228. |
| Insulation | PVC Type YI2. |
| Cable Element | Twisted pairs. |
| Screen | Tinned copper wire braid. |
| Sheath | PVC Type YM2. |
Technical Data
| Rated Voltage Uo/U (Um) | 350V |
| Operating Temperatures | flexing: -5℃~+80℃; fixed: -30℃~+80℃ |
| Minimum Bending Radius | flexing: 10×OD; fixed: 5×OD |
| Flame Retardant | VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
| Oil Resistant | Yes |
| Silicone Free | Yes |
Dimensions and Weight
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|
| NO. OF CORES×MM2 | MM | KG/KM |
|---|
| 1×2×0.14 | 3.5 | 34 |
| 2×2×0.14 | 5.6 | 40 |
| 3×2×0.14 | 5.6 | 49 |
| 4×2×0.14 | 6.0 | 55 |
| 5×2×0.14 | 6.7 | 66 |
| 6×2×0.14 | 7.2 | 86 |
| 7×2×0.14 | 7.2 | 91 |
| 8×2×0.14 | 8.4 | 97 |
| 10×2×0.14 | 9.1 | 109 |
| 12×2×0.14 | 9.2 | 141 |
| 14×2×0.14 | 9.9 | 148 |
| 15×2×0.14 | 10.4 | 152 |
| 16×2×0.14 | 10.4 | 155 |
| 18×2×0.14 | 11.0 | 171 |
| 20×2×0.14 | 11.5 | 183 |
| 22×2×0.14 | 12.3 | 205 |
| 24×2×0.14 | 12.3 | 228 |
| 25×2×0.14 | 12.5 | 239 |
| 26×2×0.14 | 12.5 | 245 |
| 27×2×0.14 | 12.5 | 251 |
| 28×2×0.14 | 13.7 | 258 |
| 30×2×0.14 | 13.7 | 270 |
| 32×2×0.14 | 14.2 | 284 |
| 34×2×0.14 | 14.7 | 300 |
| 36×2×0.14 | 14.9 | 316 |
| 38×2×0.14 | 15.6 | 350 |
| 40×2×0.14 | 16.1 | 370 |
| 44×2×0.14 | 16.8 | 390 |
| 46×2×0.14 | 17.0 | 430 |
| 50×2×0.14 | 17.7 | 440 |
| 52×2×0.14 | 17.7 | 460 |
| 55×2×0.14 | 18.2 | 480 |
| 1×2×0.25 | 4.1 | 45 |
| 2×2×0.25 | 6.3 | 53 |
| 3×2×0.25 | 6.6 | 65 |
| 4×2×0.25 | 7.0 | 80 |
| 5×2×0.25 | 7.8 | 98 |
| 6×2×0.25 | 8.6 | 114 |
| 7×2×0.25 | 8.6 | 121 |
| 8×2×0.25 | 9.8 | 129 |
| 10×2×0.25 | 11.0 | 157 |
| 12×2×0.25 | 11.2 | 189 |
| 14×2×0.25 | 12.2 | 213 |
| 15×2×0.25 | 12.8 | 225 |
| 16×2×0.25 | 12.8 | 237 |
| 18×2×0.25 | 13.5 | 248 |
| 20×2×0.25 | 14.1 | 275 |
| 22×2×0.25 | 14.9 | 303 |
| 24×2×0.25 | 15.3 | 330 |
| 25×2×0.25 | 15.5 | 343 |
| 26×2×0.25 | 15.5 | 345 |
| 27×2×0.25 | 15.5 | 350 |
| 28×2×0.25 | 17.0 | 360 |
| 30×2×0.25 | 17.0 | 375 |
| 32×2×0.25 | 17.6 | 400 |
| 34×2×0.25 | 18.2 | 410 |
| 36×2×0.25 | 18.2 | 420 |
| 38×2×0.25 | 19.0 | 450 |
| 40×2×0.25 | 19.7 | 485 |
| 44×2×0.25 | 20.5 | 500 |
| 46×2×0.25 | 20.7 | 540 |
| 50×2×0.25 | 21.5 | 550 |
| 52×2×0.25 | 21.5 | 580 |
| 55×2×0.25 | 22.1 | 630 |
| 1×2×0.34 | 5.4 | 58 |
| 2×2×0.34 | 7.0 | 65 |
| 3×2×0.34 | 7.3 | 78 |
| 4×2×0.34 | 8.1 | 90 |
| 5×2×0.34 | 8.8 | 110 |
| 6×2×0.34 | 9.8 | 130 |
| 7×2×0.34 | 9.8 | 145 |
| 8×2×0.34 | 11.2 | 150 |
| 9×2×0.34 | 12.6 | 170 |
| 10×2×0.34 | 12.6 | 190 |
| 12×2×0.34 | 12.8 | 220 |
| 14×2×0.34 | 13.3 | 245 |
| 16×2×0.34 | 14.3 | 250 |
| 18×2×0.34 | 15.2 | 275 |
| 21×2×0.34 | 15.9 | 300 |
| 25×2×0.34 | 17.5 | 400 |
| 27×2×0.34 | 17.5 | 410 |
| 30×2×0.34 | 19.1 | 440 |
| 34×2×0.34 | 20.8 | 510 |
| 37×2×0.34 | 21.5 | 550 |
| 40×2×0.34 | 22.4 | 590 |
| 44×2×0.34 | 23.6 | 600 |
| 50×2×0.34 | 24.8 | 650 |
| 52×2×0.34 | 24.8 | 680 |
| 56×2×0.34 | 25.4 | 750 |
| 61×2×0.34 | 26.2 | 840 |
| 1×2×0.5 | 4.9 | 60 |
| 2×2×0.5 | 7.8 | 89 |
| 3×2×0.5 | 8.2 | 104 |
| 4×2×0.5 | 9.1 | 126 |
| 5×2×0.5 | 9.9 | 148 |
| 6×2×0.5 | 10.7 | 171 |
| 8×2×0.5 | 12.8 | 290 |
| 10×2×0.5 | 14.0 | 320 |
| 12×2×0.5 | 14.3 | 361 |
| 16×2×0.5 | 16.1 | 421 |
| 20×2×0.5 | 17.2 | 580 |
| 25×2×0.5 | 17.9 | 740 |
| 1×2×0.75 | 5.2 | 71 |
| 2×2×0.75 | 8.4 | 105 |
| 3×2×0.75 | 8.9 | 128 |
| 4×2×0.75 | 9.8 | 156 |
| 5×2×0.75 | 10.8 | 189 |
| 6×2×0.75 | 12.1 | 216 |
| 8×2×0.75 | 13.4 | 309 |
| 10×2×0.75 | 15.5 | 355 |
| 12×2×0.75 | 15.8 | 405 |
| 16×2×0.75 | 18.0 | 565 |
| 20×2×0.75 | 19.2 | 700 |
| 25×2×0.75 | 21.8 | 950 |
| 1×2×1 | 5.3 | 75 |
| 2×2×1 | 8.9 | 116 |
| 3×2×1 | 9.4 | 140 |
| 4×2×1 | 10.4 | 191 |
| 1×2×1.5 | 5.8 | 84 |
| 2×2×1.5 | 10.2 | 122 |
| 3×2×1.5 | 10.8 | 194 |
| 4×2×1.5 | 12.0 | 240 |
