Application
These halogen free cables are used as drag chain cables for permanent flexible stresses in machineries, machines and tool building, robot systems, constantly moving machine components and multi-shift-operation.
Standards
UL AWM Style 20233
CSA AWM I/II A/B

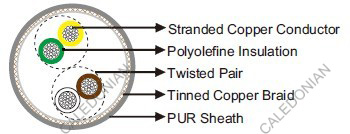

Construction
| Conductor | Stranded bare copper, class 6 according to VDE 0295/BS 6360/IEC 60228. |
| Insulation | Polyolefin. |
| Screen | Tinned copper wire braid. |
| Sheath | Full polyurethane sheath TMPU. |
Technical Data
| Rated Voltage Uo/U (Um) | 350V |
| Operating Temperatures | flexing: -40℃~+80℃; fixed: -50℃~+80℃ |
| Minimum Bending Radius | flexing: 10×OD; fixed: 5×OD |
| Flame Retardant | VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
| Halogen Free | Yes |
| Oil Resistant | Yes |
| Ozone Resistant | Yes |
| Silicone Free | Yes |
| UV Resistant | Yes |
| Abrasion Resistance | Yes |
Dimensions and Weight
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|
| NO. OF CORES×MM2 | MM | KG/KM |
|---|
| 24AWG |
| 1×2×0.25 | 4.8 | 26 |
| 2×2×0.25 | 6.7 | 61 |
| 3×2×0.25 | 7.1 | 70 |
| 4×2×0.25 | 7.6 | 82 |
| 5×2×0.25 | 8.3 | 99 |
| 6×2×0.25 | 8.9 | 126 |
| 8×2×0.25 | 9.3 | 147 |
| 10×2×0.25 | 11.7 | 179 |
| 14×2×0.25 | 12.7 | 210 |
| 22AWG |
| 1×2×0.34 | 5.1 | 35 |
| 2×2×0.34 | 7.2 | 80 |
| 3×2×0.34 | 7.6 | 100 |
| 4×2×0.34 | 8.2 | 118 |
| 5×2×0.34 | 9.0 | 134 |
| 6×2×0.34 | 9.7 | 162 |
| 8×2×0.34 | 10.3 | 214 |
| 10×2×0.34 | 12.8 | 270 |
| 14×2×0.34 | 13.8 | 304 |
| 20AWG |
| 1×2×0.5 | 5.6 | 47 |
| 2×2×0.5 | 8.4 | 100 |
| 3×2×0.5 | 8.9 | 131 |
| 4×2×0.5 | 9.7 | 149 |
| 5×2×0.5 | 10.7 | 169 |
| 6×2×0.5 | 11.7 | 181 |
| 8×2×0.5 | 12.4 | 274 |
| 10×2×0.5 | 15.6 | 332 |
| 14×2×0.5 | 17.1 | 390 |
| 19AWG |
| 1×2×0.75 | 6.1 | 56 |
| 2×2×0.75 | 9.1 | 102 |
| 3×2×0.75 | 9.6 | 144 |
| 4×2×0.75 | 10.7 | 160 |
| 5×2×0.75 | 11.7 | 193 |
| 6×2×0.75 | 12.9 | 216 |
| 8×2×0.75 | 13.7 | 327 |
| 10×2×0.75 | 17.2 | 451 |
| 14×2×0.75 | 18.8 | 521 |
| 18AWG |
| 1×2×1 | 6.5 | 64 |
| 2×2×1 | 10.0 | 120 |
| 3×2×1 | 10.6 | 160 |
| 4×2×1 | 11.7 | 184 |
| 5×2×1 | 13.2 | 217 |
G: with green-yellow earth core×: without green-yellow earth core
