PUR Sheathed CAN BUS 2×2×0.25mm2

Detail

Application

These cables with its oil-resistant PUR sheath and increased temperature resistance is employed in the wind turbine area and similar sectors for monitoring wind speed, temperature and performance parameters.

Standards

  • UL/CSA 21223

  • DIN 19245 T3

  • EN 50170

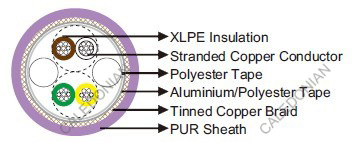

Construction

PUR Sheathed CAN BUS 2×2×0.25mm2
ConductorStranded bare copper 19×24AWG (Section 0.25 mm2).
InsulationIrradiated cross-linked PE.
Cable ElementDouble core.
Screen 1Polyester tape over stranded bundle.
Screen 2Aluminium/Polyester tape.
Overall ScreenTinned copper braid.
SheathPUR compound.

Technical Data

Operating Temperatures-40℃~+105℃
Minimum Bending Radius126mm
Impedance120Ohm +/-10%
Maximum Conductor Resistance @20°C87Ohm/km
Nominal Mutual Capacitance42nF/km
Minimum Insulation resistance1GOhm×km
Oil ResistantYes
UV ResistantYes

Dimensions and Weight

CONSTRUCTIONNOMINAL OVERALL DIAMETERNOMINAL WEIGHT
NO. OF CORES×MM2MMKG/KM
2×2×0.258.480
