Indoor/Outdoor PROFIBUS
Detail

Application

These cables are used in the cell and field area, suitable for indoor or outdoor installation and are equipped with special PVC or PE sheath.

Standards

  • DIN 19245 T3

  • EN 50170

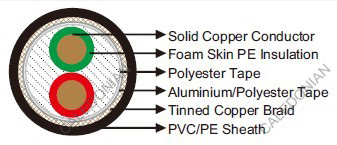

Construction

Indoor/Outdoor PROFIBUS Windmill Cables
ConductorBare copper 1×22AWG.
InsulationFoam skin PE.
Cable ElementTwo cores with filler.
Screen 1Polyester tape over stranded bundle.
Screen 2Aluminium/Polyester tape.
Overall ScreenTinned copper braid.
SheathPVC/PE.

Technical Data

Operating Temperatures-40℃~+70℃
Minimum Bending Radius120mm
Impedance150Ohm +/-10%
Maximum Conductor Resistance @20°C55Ohm/km
Nominal Mutual Capacitance35nF/km
Minimum Insulation Resistance1GOhm×km
Attenuation @9.6kHz<2.5dB/km
Attenuation @38.4kHz<4dB/km
Attenuation @4kHz<22dB/km
Attenuation @16kHz<42dB/km
Flame RetardantIEC 60332-1/FT 1/FT 4
UV ResistantYes

Dimensions and Weight

CONSTRUCTIONNOMINAL OVERALL DIAMETERNOMINAL WEIGHT
NO. OF CORES×MM2MMKG/KM
1×2×0.64 (PVC Sheath)8.075
1×2×0.64 (PE Sheath)8.065
