PROFInet AWG 22/19

Detail

Application

These cables are designed especially for extreme industrial applications, suitable for Ethernet applications.

Standards

  • PROFInet Draft

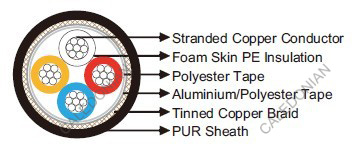

Construction

Windmill Cables
ConductorTinned copper AWG 22/19.
InsulationFoam skin PE.
Cable ElementStar quad.
Screen 1Polyester tape over stranded bundle.
Screen 2Aluminium/Polyester tape.
Overall ScreenTinned copper braid.
SheathPUR.

Technical Data

Operating Temperatures-40℃~+80℃
Minimum Bending Radius46mm
Impedance @1~100MHz100Ohm +/-15%
Maximum Conductor Resistance @20°C60Ohm/km
Nominal Mutual Capacitance52nF/km
Minimum Insulation Resistance0.5GOhm×km
Attenuation @10MHz7.6dB/100m
Attenuation @16MHz10dB/100m
Attenuation @62.5MHz26.5dB/100m
Attenuation @100MHz41dB/100m
Next @10MHz50.3dB
Next @16MHz47.3dB
Next @62.5MHz38.4dB
Next @100MHz35.3dB
ACR @10MHz42.7dB
ACR @16MHz37.3dB
ACR @62.5MHz11.9dB
ACR @100MHz5.7dB
Flame RetardantIEC 60332-1
Halogen FreeIEC 60754
Oil ResistantYes
UV ResistantYes

Dimensions and Weight

CONSTRUCTIONNOMINAL OVERALL DIAMETERNOMINAL WEIGHT
NO. OF CORES×MM2MMKG/KM
2×2×0.646.554
