Application
These cables are designed for the most extreme requirements in the industry and other heavy-duty environments in torsion applications.
Standards

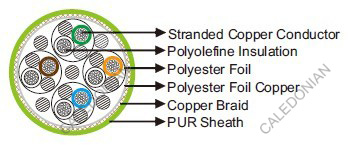

Construction
| Conductor | Bare copper 19×26AWG. |
| Insulation | PO. |
| Cable Element | Double core. |
| Shielding | Polyester tape over stranded bundle. |
| Screen 1 | Polyester foil copper, bare. |
| Screen 2 | Copper braid. |
| Sheath | PUR |
Technical Data
| Operating Temperatures | -20℃~+80℃ |
| Minimum Bending Radius | 80mm |
| Impedance @1~100MHz | 100Ohm +/-15% |
| Nominal Mutual Capacitance | 50nF/km |
| Attenuation @10MHz | <1.3dB/100m |
| Attenuation @16MHz | <1.6dB/100m |
| Attenuation @62.5MHz | <3.2dB/100m |
| Attenuation @100MHz | <4dB/100m |
| Next @10MHz | 47dB |
| Next @16MHz | 44dB |
| Next @62.5MHz | 35dB |
| Next @100MHz | 32dB |
| ACR @10MHz | 45.7dB |
| ACR @16MHz | 42.4dB |
| ACR @62.5MHz | 31.8dB |
| ACR @100MHz | 28dB |
| Flame Retardant | IEC 60332-1 |
| Halogen Free | IEC 60754 |
| Smoke Density | IEC 61034 |
| Oil Resistant | Yes |
| UV Resistant | Yes |
Dimensions and Weight
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|
| NO. OF CORES×MM2 | MM | KG/KM |
|---|
| 4×2×0.64 | 7.5 | 79 |
