A-DQ(ZN)BH/I-DQ(ZN)BH Fibre Optic Cables
Detail

Application

These cables are used either as central bundle core cable or as stranded versions, suitable for indoor and outdoor cabling of buildings and facilities.

Standards

  • DIN VDE 0888

  • EN 187000

  • IEC 60794

  • ISO 11801

  • EN 50173-1

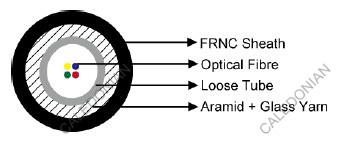

Construction

A-DQ(ZN)BH/I-DQ(ZN)BH Fibre Optic Cables
Fibre Type?Loose Tube.
Strain ReliefAramid.
ArmourGlass yarns.
SheathFRNC.

Technical Data

Operating Temperatures-20℃~+60℃
Minimum Bending Radius150mm
Flame RetardantIEC 60332-1/IEC 60332-3
Halogen FreeIEC 60754
Corrosive GasesEN 50267-2/ IEC 60754
Smoke DensityIEC 61034
UV ResistantYes
Longitudinally Water-tightYes

Dimensions and Weight

A-DQ(ZN)BH, Central bundle

CONSTRUCTIONFIBRE TYPENOMINAL OVERALL DIAMETERNOMINAL WEIGHT
NO. OF FIBRES-MMKG/KM
4~12Multimode G50/12510.0125
4~12Multimode G62.5/12510.0125
4~12Single-Mode E9/12510.0125
16~24Multimode G50/12510.0145
16~24Multimode G62.5/12510.0145
16~24Single-Mode E9/12510.0145

A-DQ(ZN)BH, Stranded

CONSTRUCTIONFIBRE TYPENO. OF FIBRES PER CORENOMINAL OVERALL DIAMETERNOMINAL WEIGHT
NO. OF FIBRES--MMKG/KM
6~36Multimode G50/125613160
6~36Multimode G62.5/125613160
6~36Single-Mode E9/125613160
8~48Multimode G50/125813160
8~48Multimode G62.5/125813160
8~48Single-Mode E9/125813160
12~72Multimode G50/1251213160
12~72Multimode G62.5/1251213160
12~72Single-Mode E9/1251213160
42~48Multimode G50/125614.5210
42~48Multimode G62.5/125614.5210
42~48Single-Mode E9/125614.5210
56~64Multimode G50/125814.5210
56~64Multimode G62.5/125814.5210
56~64Single-Mode E9/125814.5210
84~96Multimode G50/1251214.5210
84~96Multimode G62.5/1251214.5210
84~96Single-Mode E9/1251214.5210
