MTX300 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed Flame Retardant Power & Control Cables (Single
Detail

MTX300 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed Flame Retardant Power & Control Cables (Single Core)

Flame Retardant Power & Control Cables (Single Core)

Application
These unarmoured power & control cables are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free.

Standards
 IEC 60092-350/351/353/359
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

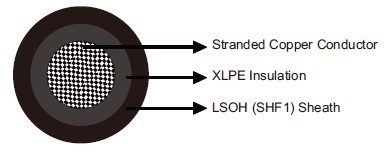

Construction
 Conductors: Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be offered upon request.
 Insulation: XLPE.
 Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification
 Single core: Black

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD (OD>25mm); 4×OD (OD ≤25mm)
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight
3MTX300 1RZ1-R Single Core 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)

Part No.

Construction
No. of cores×Cross
section(mm²)

Nominal Insulation
Thickness mm

Nominal Sheath Thickness mm

Nominal Overall
Diameter mm

Nominal Weight kg/km

MTX300-1RZ1-R-1C1.5

1×1.5

0.7

1.0

5.0

40

MTX300-1RZ1-R-1C2.5

1×2.5

0.7

1.0

5.4

50

MTX300-1RZ1-R-1C4

1×4

0.9

1.04

6.4

70

MTX300-1RZ1-R-1C6

1×6

0.9

1.04

7.0

90

MTX300-1RZ1-R-1C10

1×10

0.9

1.04

7.9

130

MTX300-1RZ1-R-1C16

1×16

0.9

1.04

8.9

190

MTX300-1RZ1-R-1C25

1×25

0.9

1.1

10.4

295

MTX300-1RZ1-R-1C35

1×35

0.9

1.1

11.7

380

MTX300-1RZ1-R-1C50

1×50

1.0

1.2

13.3

510

MTX300-1RZ1-R-1C70

1×70

1.1

1.3

15.5

720

MTX300-1RZ1-R-1C95

1×95

1.1

1.3

17.4

970

MTX300-1RZ1-R-1C120

1×120

1.2

1.4

19.4

1220

MTX300-1RZ1-R-1C150

1×150

1.4

1.5

21.5

1505

MTX300-1RZ1-R-1C185

1×185

1.6

1.5

23.8

1865

MTX300-1RZ1-R-1C240

1×240

1.7

1.6

26.7

2420

MTX300-1RZ1-R-1C300

1×300

1.8

1.7

29.6

3015
