MFX400 0.6/1 kV Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed Fire Resistant Power & Control Cab
Detail

MFX400 0.6/1 kV Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed Fire Resistant Power & Control Cables (Multicore)

MTX400 0.6/1 kV HEPR Insulated, LSOH (SHF1) Sheathed Flame Retardant Power & Control Cables (Multicore)

Application
These unarmoured fire resistant cables are used on board of ships in all locations for fixed installations where cable protection is not required. These cables are fire resistant, flame retardant, low smoke & halogen free.

Standards
 IEC 60092-350/351/353/359
 IEC 60331-21
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

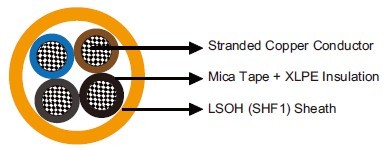

Construction
 Conductors: Class 2 stranded copper conductor. Class 5 stranded conductors can be offered upon request.
 Insulation: Mica tape + XLPE.
 Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification
Two cores: Blue, Brown.
Three cores: Brown, Black, Grey.
Four cores: Blue, Brown, Black, Grey.
Five cores: Blue, Brown, Black, Grey, Black.
Multi cores: White with black numbers.

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD (OD>25mm); 4×OD (OD ≤25mm)
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight
MFX400 1mRZ1-R Multicore 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)

Part No.

Construction
No. of cores×Cross
section(mm²)

Nominal Insulation
Thickness mm

Nominal Sheath Thickness mm

Nominal Overall
Diameter mm

Nominal Weight kg/km

MFX400-1mRZ1-R-2C1.5

2×1.5

0.7

1.1

8.5

85

MFX400-1mRZ1-R-2C2.5

2×2.5

0.7

1.1

9.5

110

MFX400-1mRZ1-R-2C4

2×4

0.9

1.1

11.7

140

MFX400-1mRZ1-R-2C6

2×6

0.9

1.2

13.0

230

MFX400-1mRZ1-R-2C10

2×10

0.9

1.2

14.7

330

MFX400-1mRZ1-R-2C16

2×16

0.9

1.3

17.0

490

MFX400-1mRZ1-R-2C25

2×25

0.9

1.3

19.5

750

MFX400-1mRZ1-R-2C35

2×35

0.9

1.5

22.0

990

MFX400-1mRZ1-R-2C50

2×50

1.0

1.5

24.8

1340

MFX400-1mRZ1-R-3C1.5

3×1.5

0.7

1.1

9.5

105

MFX400-1mRZ1-R-3C2.5

3×2.5

0.7

1.1

10.0

145

MFX400-1mRZ1-R-3C4

3×4

0.9

1.2

12.7

205

MFX400-1mRZ1-R-3C6

3×6

0.9

1.2

13.9

270

MFX400-1mRZ1-R-3C10

3×10

0.9

1.3

15.9

400

MFX400-1mRZ1-R-3C16

3×16

0.9

1.3

18.4

610

MFX400-1mRZ1-R-3C25

3×25

0.9

1.5

21.4

920

MFX400-1mRZ1-R-3C35

3×35

0.9

1.6

24.2

1330

MFX400-1mRZ1-R-3C50

3×50

1.0

1.7

27.5

1830

MFX400-1mRZ1-R-3C70

3×70

1.1

1.8

32.0

2570

MFX400-1mRZ1-R-3C70S

3×70 (sector shaped)

1.1

1.8

27.5

2370

MFX400-1mRZ1-R-3C95

3×95

1.1

1.9

36.4

3360

MFX400-1mRZ1-R-3C95S

3×95 (sector shaped)

1.1

1.9

31.1

3130

MFX400-1mRZ1-R-3C120

3×120

1.2

2.1

40.7

4180

MFX400-1mRZ1-R-3C120S

3×120 (sector shaped)

1.2

2.1

34.4

3930

MFX400-1mRZ1-R-4C1.5

4×1.5

0.7

1.1

10.0

135

MFX400-1mRZ1-R-4C2.5

4×2.5

0.7

1.1

11.2

180

MFX400-1mRZ1-R-4C4

4×4

0.9

1.2

13.9

260

MFX400-1mRZ1-R-4C6

4×6

0.9

1.2

15.2

350

MFX400-1mRZ1-R-4C10

4×10

0.9

1.3

17.4

530

MFX400-1mRZ1-R-4C16

4×16

0.9

1.4

20.2

800

MFX400-1mRZ1-R-4C25

4×25

0.9

1.5

23.5

1230

MFX400-1mRZ1-R-4C35

4×35

0.9

1.7

26.7

1650

MFX400-1mRZ1-R-5C1.5

5×1.5

0.7

1.1

11.0

170

MFX400-1mRZ1-R-7C1.5

7×1.5

0.7

1.2

12.6

210

MFX400-1mRZ1-R-12C1.5

12×1.5

0.7

1.3

16.5

350

MFX400-1mRZ1-R-19C1.5

19×1.5

0.7

1.4

19.6

520

MFX400-1mRZ1-R-27C1.5

27×1.5

0.7

1.5

23.3

730

MFX400-1mRZ1-R-37C1.5

37×1.5

0.7

1.6

26.3

980

MFX400-1mRZ1-R-5C2.5

5×2.5

0.7

1.2

12.5

240

MFX400-1mRZ1-R-7C2.5

7×2.5

0.7

1.2

14.1

300

MFX400-1mRZ1-R-12C2.5

12×2.5

0.7

1.3

18.6

490

MFX400-1mRZ1-R-19C2.5

19×2.5

0.7

1.4

22.1

750

MFX400-1mRZ1-R-27C2.5

27×2.5

0.7

1.5

26.4

1060
