MFX400 0.6/1 kV Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Fire Resistant Power & Control Cables (Multicore)
Application
These armoured fire resistant cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are fire resistant, flame retardant, low smoke & halogen free.
Standards
IEC 60092-350/351/353/359
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

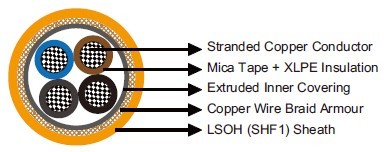

Construction
Conductors: Class 2 stranded copper conductor. Class 5 stranded conductors can be offered upon request.
Insulation: Mica tape + XLPE.
Inner Covering: Extruded inner covering.
Armour: Copper wire braid.
Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.
Core Identification
Two cores: Blue, Brown.
Three cores: Brown, Black, Grey.
Four cores: Blue, Brown, Black, Grey.
Five cores: Blue, Brown, Black, Grey, Black.
Multi cores: White with black numbers.
Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -30℃ ~ +80℃
Dimensions and Weight
MFX400 1mRMZ1-R Multicore Armoured 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)
Part No. | Construction
No. of cores×Cross
section(mm²) | Nominal Insulation Thickness mm | Nominal Sheath Thickness mm | Nominal Overall
Diameter mm | Nominal Weight kg/km |
MFX400-1mRMZ1-R-2C1.5 | 2×1.5 | 0.7 | 1.1 | 10.5 | 180 |
MFX400-1mRMZ1-R-2C2.5 | 2×2.5 | 0.7 | 1.1 | 11.7 | 230 |
MFX400-1mRMZ1-R-2C4 | 2×4 | 0.9 | 1.2 | 12.9 | 290 |
MFX400-1mRMZ1-R-2C6 | 2×6 | 0.9 | 1.2 | 14.8 | 400 |
MFX400-1mRMZ1-R-2C10 | 2×10 | 0.9 | 1.3 | 16.6 | 570 |
MFX400-1mRMZ1-R-2C16 | 2×16 | 0.9 | 1.4 | 19.0 | 770 |
MFX400-1mRMZ1-R-2C25 | 2×25 | 0.9 | 1.5 | 22.8 | 1130 |
MFX400-1mRMZ1-R-2C35 | 2×35 | 0.9 | 1.5 | 25.0 | 1420 |
MFX400-1mRMZ1-R-2C50 | 2×50 | 1.0 | 1.5 | 28.0 | 1860 |
MFX400-1mRMZ1-R-3C1.5 | 3×1.5 | 0.7 | 1.1 | 11.2 | 210 |
MFX400-1mRMZ1-R-3C2.5 | 3×2.5 | 0.7 | 1.1 | 12.2 | 260 |
MFX400-1mRMZ1-R-3C4 | 3×4 | 0.9 | 1.2 | 13.5 | 340 |
MFX400-1mRMZ1-R-3C6 | 3×6 | 0.9 | 1.3 | 15.7 | 480 |
MFX400-1mRMZ1-R-3C10 | 3×10 | 0.9 | 1.3 | 17.7 | 680 |
MFX400-1mRMZ1-R-3C16 | 3×16 | 0.9 | 1.4 | 20.0 | 930 |
MFX400-1mRMZ1-R-3C25 | 3×25 | 0.9 | 1.6 | 24.1 | 1380 |
MFX400-1mRMZ1-R-3C35 | 3×35 | 0.9 | 1.6 | 26.4 | 1770 |
MFX400-1mRMZ1-R-3C50 | 3×50 | 1.0 | 1.6 | 29.6 | 2350 |
MFX400-1mRMZ1-R-3C70S | 3×70 (sector shaped) | 1.1 | 2.0 | 31.9 | 2930 |
MFX400-1mRMZ1-R-3C95S | 3×95 (sector shaped) | 1.1 | 2.1 | 36.1 | 3870 |
MFX400-1mRMZ1-R-3C120S | 3×120 (sector shaped) | 1.2 | 2.2 | 39.6 | 4770 |
MFX400-1mRMZ1-R-4C1.5 | 4×1.5 | 0.7 | 1.1 | 12.1 | 250 |
MFX400-1mRMZ1-R-4C2.5 | 4×2.5 | 0.7 | 1.2 | 12.9 | 300 |
MFX400-1mRMZ1-R-4C4 | 4×4 | 0.9 | 1.3 | 15.4 | 440 |
MFX400-1mRMZ1-R-4C6 | 4×6 | 0.9 | 1.3 | 17.0 | 570 |
MFX400-1mRMZ1-R-4C10 | 4×10 | 0.9 | 1.4 | 19.1 | 810 |
MFX400-1mRMZ1-R-4C16 | 4×16 | 0.9 | 1.5 | 22.2 | 1160 |
MFX400-1mRMZ1-R-4C25 | 4×25 | 0.9 | 1.6 | 26.9 | 1720 |
MFX400-1mRMZ1-R-4C35 | 4×35 | 0.9 | 1.7 | 29.7 | 2220 |
MFX400-1mRMZ1-R-5C1.5 | 5×1.5 | 0.7 | 1.2 | 12.8 | 280 |
MFX400-1mRMZ1-R-7C1.5 | 7×1.5 | 0.7 | 1.2 | 14.3 | 370 |
MFX400-1mRMZ1-R-12C1.5 | 12×1.5 | 0.7 | 1.4 | 17.9 | 570 |
MFX400-1mRMZ1-R-19C1.5 | 19×1.5 | 0.7 | 1.5 | 20.7 | 790 |
MFX400-1mRMZ1-R-27C1.5 | 27×1.5 | 0.7 | 1.7 | 24.4 | 1100 |
MFX400-1mRMZ1-R-37C1.5 | 37×1.5 | 0.7 | 1.9 | 27.3 | 1380 |
MFX400-1mRMZ1-R-5C2.5 | 5×2.5 | 0.7 | 1.2 | 14.7 | 400 |
MFX400-1mRMZ1-R-7C2.5 | 7×2.5 | 0.7 | 1.2 | 15.8 | 480 |
MFX400-1mRMZ1-R-12C2.5 | 12×2.5 | 0.7 | 1.4 | 20.3 | 780 |
MFX400-1mRMZ1-R-19C2.5 | 19×2.5 | 0.7 | 1.5 | 23.4 | 1070 |
MFX400-1mRMZ1-R-27C2.5 | 27×2.5 | 0.7 | 1.7 | 27.9 | 1500 |
