MFX300 0.6/1 kV Fire Barriers + HEPR Insulated, LSOH (SHF1) Sheathed, Screened Fire Resistant Power & Control Cables (Single Core)
Application
These cables are used for fixed installations on ships and offshore units in all locations and on open deck in safety circuits, where fire resistance is required. The good screening qualities of the copper braid also reduce radio interference and electrical influences to electronics installations. These cables are fire resistant, flame retardant, low smoke & halogen free.
Standards
DIN 89160/98
IEC 60092-353
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

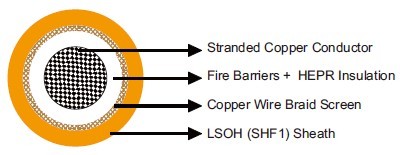

Construction
Conductors: Class 2 stranded copper conductor.
Insulation: Fire barriers + HEPR.
Overall Screen: Copper wire braid.
Outer Sheath: LSOH (SHF1).
Core Identification
Single core: Natural colour (beige).
Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -20℃ ~ +75℃
Dimensions and Weight
Part No. | Construction
No. of cores×Cross
section(mm²) | Nominal Insulation Thickness mm | Nominal Sheath Thickness mm | Nominal Overall
Diameter mm | Nominal Weight kg/km |
MFX300-1mG7MZ1-R-1C25 | 1×25 | 0.9 | 1.2 | 12.5 | 380 |
MFX300-1mG7MZ1-R-1C35 | 1×35 | 0.9 | 1.2 | 13.5 | 480 |
MFX300-1mG7MZ1-R-1C50 | 1×50 | 1.0 | 1.3 | 15.5 | 670 |
MFX300-1mG7MZ1-R-1C70 | 1×70 | 1.1 | 1.4 | 17.5 | 900 |
MFX300-1mG7MZ1-R-1C95 | 1×95 | 1.1 | 1.4 | 19.5 | 1170 |
MFX300-1mG7MZ1-R-1C120 | 1×120 | 1.6 | 1.5 | 21.0 | 1430 |
