Application
These cables with increased tolerance to torsion application, UV and oil resistant are specifically designed for wind power applications.
Standards

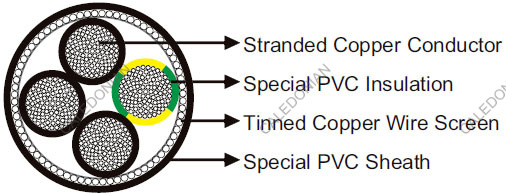

Construction
| Conductor | Stranded bare copper according to DIN VDE 0295. |
| Insulation | Special PVC flexible at low temperatures. |
| Screen | Tinned copper wire wrapped. |
| Sheath | Special PVC flexible at low temperatures. |
Technical Data
| RATED VOLTAGE U0/U (UM) | 1000V |
|---|
| OPERATING TEMPERATURES | -40℃~+80℃ |
|---|
| MINIMUM BENDING RADIUS | 10×OD |
|---|
| TORSION APPLICATION | +/-90°/m |
|---|
| FLAME RETARDANT | FT1 |
|---|
| OIL RESISTANT | Yes |
|---|
| UV RESISTANT | Yes |
|---|
Dimensions and Weight
| CONSTRUCTION | AWG /MCM | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|
| NO. OF CORES×MM^2 | - | MM | KG/KM |
|---|
| 2×2×0.25 | 24 | 8.9 | 90 |
| 4×2×0.25 | 24 | 9.9 | 115 |
| 5×2×0.25 | 24 | 11.1 | 130 |
| 4×0.34 | 22 | 7.7 | 91 |
| 2×2×0.34 | 22 | 9.6 | 110 |
| 4×2×0.34 | 22 | 11.0 | 130 |
| 4×0.5 | 20 | 8.0 | 105 |
| 6×0.5 | 20 | 9.2 | 130 |
| 10×0.5 | 20 | 11.4 | 170 |
| 12×0.5 | 20 | 11.7 | 220 |
| 2×2×0.5 | 20 | 9.8 | 115 |
| 4×2×0.5 | 20 | 11.3 | 150 |
| 3×0.75 | 19 | 7.7 | 97 |
| 4×0.75 | 19 | 8.3 | 122 |
| 5×0.75 | 19 | 9.0 | 145 |
| 7×0.75 | 19 | 9.7 | 200 |
| 8×0.75 | 19 | 10.7 | 220 |
| 12×0.75 | 19 | 12.2 | 258 |
| 18×0.75 | 19 | 14.4 | 400 |
| 25×0.75 | 19 | 17.8 | 552 |
| 32×0.75 | 19 | 18.8 | 610 |
| 41×0.75 | 19 | 21.2 | 795 |
| 50×0.75 | 19 | 23.5 | 900 |
| 2×2×0.75 | 19 | 10.4 | 130 |
| 4×2×0.75 | 19 | 12.7 | 211 |
| 8×2×0.75 | 19 | 17.1 | 410 |
| 12×2×0.75 | 19 | 17.6 | 520 |
| 4×1.0 | 18 | 8.7 | 110 |
| 6×1.0 | 18 | 10.2 | 150 |
| 8×1.0 | 18 | 11.7 | 210 |
| 12×1.0 | 18 | 13.3 | 280 |
| 2×1.5 | 16 | 6.8 | 86 |
| 3×1.5 | 16 | 8.8 | 133 |
| 4×1.5 | 16 | 9.4 | 159 |
| 5×1.5 | 16 | 10.3 | 195 |
| 7×1.5 | 16 | 11.9 | 247 |
| 12×1.5 | 16 | 14.7 | 410 |
| 2×2×1.5 | 16 | 12.1 | 180 |
| 3×2×1.5 | 16 | 14.0 | 235 |
| 4×2×1.5 | 16 | 14.6 | 210 |
| 3×2.5 | 14 | 10.4 | 210 |
| 4×2.5 | 14 | 10.6 | 264 |
| 5×2.5 | 14 | 12.3 | 288 |
| 7×2.5 | 14 | 14.8 | 411 |
| 12×2.5 | 14 | 18.2 | 638 |
| 5×4 | 12 | 13.6 | 382 |
| 7×4 | 12 | 16.3 | 582 |
| 12×4 | 12 | 20.0 | 806 |
| 5×6 | 10 | 17.4 | 640 |
| 4×10 | 8 | 17.8 | 727 |
| 5×10 | 8 | 19.8 | 935 |
| 4×16 | 6 | 21.1 | 1072 |
| 5×16 | 6 | 26.2 | 1330 |
| 4×25 | 4 | 26.0 | 1664 |
| 5×25 | 4 | 28.6 | 2014 |
| 4×50 | 1 | 37.0 | 3200 |
| 1×70 | 2/0 | 19.8 | 950 |
| 1×95 | 3/0 | 22.5 | 1200 |
| 1×120 | 4/0 | 25.0 | 1400 |
| 1×150 | 300 | 24.9 | 2000 |
| 1×185 | 350 | 27.8 | 2340 |
| 1×240 | 500 | 32.5 | 3150 |
| 1×300 | 600 | 39.0 | 3920 |
