Applications
These cables are designed for general use where baregrounding conductors are not required ordesired .
Standards
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

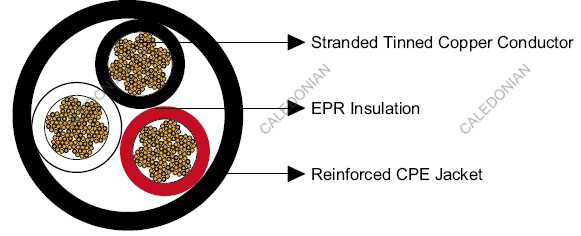

Construction
Conductors: Stranded annealed tinned copper conductor.
Insulation:EPR.
Sheath: Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be offered as an option.
Options:
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
Dimensions and Weight:
| CONSTRUCTION | NO. OF STRANDS | NOMINAL INSULATION THICKNESS | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT | AMPACITY |
|---|
| NO. OF CORES×AWG/KCMIL | - | INCH | MM | INCH | MM | LBS/KFT | KG/KM | A |
|---|
| 3×8 | 133 | 0.06 | 1.5 | 0.91 | 23.1 | 550 | 818 | 59 |
| 3×6 | 133 | 0.06 | 1.5 | 1.01 | 25.7 | 730 | 1086 | 79 |
| 3×4 | 259 | 0.06 | 1.5 | 1.17 | 29.7 | 1020 | 1518 | 104 |
| 3×2 | 259 | 0.06 | 1.5 | 1.34 | 34.0 | 1430 | 2128 | 138 |
| 3×1 | 259 | 0.08 | 2.0 | 1.51 | 38.4 | 1800 | 2678 | 161 |
| 3×1/0 | 266 | 0.08 | 2.0 | 1.65 | 41.9 | 2140 | 3184 | 186 |
| 3×2/0 | 342 | 0.08 | 2.0 | 1.75 | 44.5 | 2580 | 3839 | 215 |
| 3×3/0 | 418 | 0.08 | 2.0 | 1.89 | 48.0 | 2922 | 4347 | 249 |
| 3×4/0 | 532 | 0.08 | 2.0 | 2.04 | 51.8 | 3800 | 5654 | 287 |
| 3×250 | 741 | 0.095 | 2.4 | 2.39 | 60.7 | 4368 | 6500 | 320 |
| 3×350 | 888 | 0.095 | 2.4 | 2.66 | 67.5 | 5895 | 8772 | 394 |
| 3×500 | 1221 | 0.095 | 2.4 | 2.98 | 75.8 | 7820 | 11638 | 487 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
