Applications
These flat parallel Mining cables are designed for use on D.C. off-track mining equipment, such as D.C. shuttle cars, drills,cutting and loading machines.
Standards
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA-C22.2 No.96

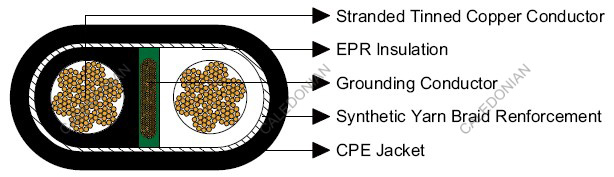

Construction
Conductors: Stranded annealed tinned copper conductor.
Insulation:EPR.
Grounding Conductor:Tinned copper conductor with a green outer covering.
Reinforcement: Synthetic yarn.
Sheath: Extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be offered upon request.
Options:
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
Dimensions and Weight:
| CONSTRUCTION | NO. OF STRANDS | GROUNDING CONDUCTOR SIZE | NOMINAL INSULATION THICKNESS | NOMINAL OVERALL DIAMETER HEIGHT×WIDTH | NOMINAL WEIGHT | AMPACITY |
|---|
| NO. OF CORES×AWG/KCMIL | - | AWG/KCMIL | INCH | MM | INCH | MM | LBS/KFT | KG/KM | A |
|---|
| 2×6 | 133 | 8 | 0.06 | 1.5 | 0.56×1.02 | 14.2×25.9 | 500 | 744 | 95 |
| 2×4 | 259 | 7 | 0.06 | 1.5 | 0.61×1.15 | 15.5×29.2 | 635 | 945 | 127 |
| 2×3 | 259 | 6 | 0.06 | 1.5 | 0.68×1.26 | 17.3×32.0 | 785 | 1170 | 145 |
| 2×2 | 259 | 5 | 0.06 | 1.5 | 0.73×1.35 | 18.5×34.3 | 935 | 1390 | 167 |
| 2×1 | 259 | 4 | 0.08 | 2.0 | 0.81×1.55 | 20.6×39.4 | 1185 | 1760 | 191 |
| 2×1/0 | 259 | 3 | 0.08 | 2.0 | 0.93×1.67 | 23.6×42.4 | 1470 | 2190 | 217 |
| 2×2/0 | 329 | 2 | 0.08 | 2.0 | 0.99×1.85 | 25.1×47.0 | 1790 | 2660 | 250 |
| 2×3/0 | 413 | 1 | 0.08 | 2.0 | 1.03×2.00 | 26.2×50.8 | 2145 | 3190 | 286 |
| 2×4/0 | 532 | 1/0 | 0.08 | 2.0 | 1.10×2.10 | 27.9×53.3 | 2545 | 3790 | 328 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
