Type SHD Three-Conductor Flat Portable Power Cable 2kV
Detail

    Applications

These flat parallel cables are designed for use on continuous miners requiringgrounding conductors and metallic shieldingover each conductor.

    Standards

  • ICEA S-75-381/NEMA WC 58

  • ASTM B 172

  • ASTM B 33



    Construction

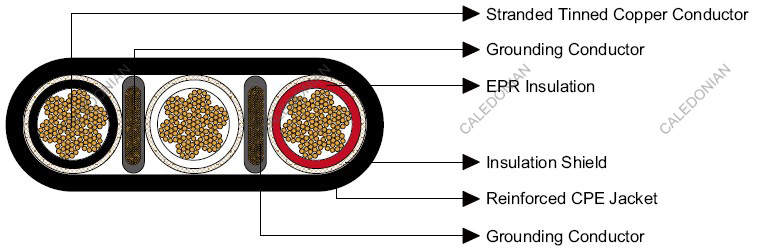

Type SHD Mining Cable

  • Conductors: Stranded annealed tinned copper conductor.

  • Insulation:EPR.

  • Insulation Shield:Tinned copper/textile braid.

  • Grounding Conductor:Tinned copper conductor with semi-conductive thermoset compound.

  • Sheath: Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be offered as an option.

Options:Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

    Mechanical and Thermal Properties

  • Minimum Bending Radius: 6×OD

  • Maximum Operating Temperature: +90℃


    Dimensions and Weight:

CONSTRUCTIONNO. OF STRANDSGROUNDING CONDUCTOR SIZENOMINAL INSULATION THICKNESSNOMINAL OVERALL DIAMETER HEIGHT×WIDTHNOMINAL WEIGHTAMPACITY
NO. OF CORES×AWG/KCMIL-AWG/KCMILINCHMMINCHMMLBS/KFTKG/KMA
3×225960.071.80.94×2.4523.9×62.222433338159
3×125950.082.01.04×2.6426.4×67.125403780184
3×1/025940.082.01.08×2.8227.4×71.629154338211
3×2/032930.082.01.18×2.9930.0×76.033464980243
3×3/041320.082.01.25×3.2931.8×83.638905789279

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
