Type SHD-CGC Three-Conductor Portable Power Cable 5kV
Detail

    Applications

These heavy duty cables are designed for applications such as longwall shearers, continuous miners, loaders, drills, conveyors, pumps, and other mobile equipment requiring grounding conductors, where a ground check conductor, and metallic shielding are required.

    Standards

  • ICEA S-75-381/NEMA WC 58

  • ASTM B 172

  • ASTM B 33

  • CAN/CSA C22.2 No. 96


    Construction

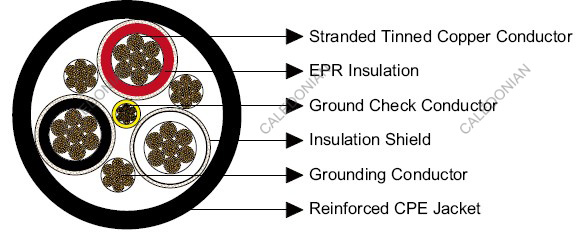

Type SHD-CGC Three-Conductor Portable Mining Cable

  • Conductors: Stranded annealed tinned copper conductor.

  • Conductor Shield:Semi-conducting layer.

  • Insulation:EPR.

  • Insulation Shield:Non-conducting tape + Tinned copper/textile braid.

  • Ground Check Conductor:Tinned copper with a yellow insulation, located in the center of the cable.

  • Grounding Conductor:Tinned copper conductor.

  • Sheath: Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be offered as an option.

Options:
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

    Mechanical and Thermal Properties

  • Minimum Bending Radius: 6×OD

  • Maximum Operating Temperature: +90℃



    Dimensions and Weight:

CONSTRUCTIONNO. OF STRANDSGROUNDING CONDUCTOR SIZEGROUND CHECK CONDUCTOR SIZENOMINAL INSULATION THICKNESSNOMINAL SHEATH THICKNESSNOMINAL OVERALL DIAMETERNOMINAL WEIGHTAMPACITY
NO. OF CORES×AWG/KCMIL-AWG/KCMILAWG/KCMILINCHMMINCHMMINCHMMLBS/KFTKG/KMA
3×2/03235160.112.80.2205.62.2055.937165529243
3×3/04184160.112.80.2356.02.3659.941306145279
3×4/05323160.112.80.2356.02.5063.551907722321
3×3508881160.123.00.2656.72.9574.9757111264435

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
